Introdu\E7\E3o

SVG

SVG - Scalabre Vector Graphics. Esse formato nada mais é do que um arquivo de texto. Isso mesmo! Um arquivo de texto que podemos abrir em qualquer editor e modificar. Claro que essa modificação deverá respeitar a estrutura de tags do XML e as predefinições do formato, mas o importante é que ele é extremamente acessível. Você pode abri-lo usando um programa com interface gráfica voltada para o desenho rederizado (convertido de texto para gráfico), ou mesmo editá-lo alterando os dados com, por exemplo o Bloco de notas do Windows. O SVG agrada tanto um usuário-padrão desses serviços, que está interessado principalmente na forma visual, como um programador ou gerenciador de servidores que pode lançar mão da alternativa para gerar arquivos mais agradáveis aos olhos (bonitos e bem-feitos) de forma automática, ou seja, criando scripts que geram arquivos sem a intervenção de um usuário.

Jogos

Jogos? Dá para fazer joguinhos no SVG? Bem, dá para fazer joguinhos cruzando arquivos SVG com Javascript. Pouca gente sabe mas há a possibilidade de animar o SVG. Infelizmente é uma tecnologia nova e pouco suportada por browsers de Internet.

Como ao Javascript é uma tecnologia usada largamente, alguns sábios desenvolvedores principiaram a utilizá-la em conjunto com a beleza dos gráficos confeccionados no SVG. Como a quantidade de browsers que abrem arquivos SVG estéticos é muito grande, os joguinhos costuma funcionar em inúmeros deles. Dizem as boas idéias que o SVG será o Flash (SWF) open source.

SVG no HTML

As linhas de SVG podem ser encaixadas em originais do HTML com o uso do Tag do <embed>, do Tag do <object>, ou do Tag do <iframe>.

Criando linhas de SVG usando o HTML

Abaixo de você deve ver trás métodos diferentes em como encaixar a lima de SVG no HTML page.

Usando o Tag do <embed>

O Tag do <embed> é suportado em quase todos os browsers principais, e reserva scripting.

Nota: O visor do ad\F4be SVG recomenda que voc\EA usa o Tag ENCAIXAR ao encaixar SVG no HTML page! Entretanto, se voc\EA quiser criar XHTML v\E1lido, voc\EA n\E3o pode usar o <embed> - o Tag do <embed> n\E3o \E9 alistado em nenhumas especifica\E7\F5es do HTML

Sintaxe:

<embed src="rectangle.svg" height="100" width="300" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" >

Nota: O atributo do pluginspage aponta a um URL para o plugin ao download.

Ponta: Sustenta\E7\E3o do Internet Explorer um atributo adicional, wmode= " transparente ", que deixou o fundo do HTML page brilhar completamente.

Usando o Tag do <object>

O Tag do <object> \E9 um Tag HTML4 padr\E3o e \E9 suportado em todos os browsers. A desvantagem \E9 que n\E3o reserva scripting a l\EDngua.

Nota: Se voc\EA instalar a vers\E3o a mais atrasada do visor do ad\F4be SVG, as limas de SVG n\E3o trabalhar\E3o ao usar o Tag do <object>.

Sintaxe:

<object data="rectangle.svg" height="100" width="300" type="image/svg+xml"
codebase="http://www.adobe.com/svg/viewer/install/" >

Nota: Os pontos do atributo do codebase a um URL para que o plugin download

Usando o Tag do <iframe>

O Tag do <iframe> trabalha em quase todos os browsers.

Sintaxe:

<iframe src="rectangle.svg" height="100" width="300" type="image/svg+xml" ></iframe>

Adicionando elementos de SVG diretamente no c\F3digo do HTML

Arquivo: teste.xml
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>SVG</title>
</head>
<body>
<p style="background-color:#FF0000">This is an HTML paragraph</p>
<svg xmlns="http://www.w3.org/2000/svg" width="300" height="100" style="border:solid" version="1.1" >
<circle cx="100" cy="50" r="40" stroke="black" stroke-width="2" fill="red" />
</svg>
</body>
</html>
Resultado:

Preload
Preload
Fundo
Fundo Branco
Fundo Transparente
Fundo Colorido
Inserindo uma Imagem de Fundo

Cursor
Posição do Mouse (x, y)
Cursor de Estilo
Criando um Cursor Simples
Criando um Cursor Animado
Cursor Tail Effect

Tipos de Imagem

Imagem Simples Gif Animado
*.jpg / *.png *.gif

Link estilo Html

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="100" style="border:solid">
<a xlink:href="http://www.w3.org">
<rect x="30" y="30" width="200" height="40" fill="yellow" stroke="red" stroke-width="2" />
<text x="130" y="60" style="text-anchor:middle">My button</text>
</a>
</svg>
Resultado:
My button

Figuras Geom\E9tricas 2D
Quadrado

XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="200" height="200" style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <rect
      x="50"
      y="50"
      width="100"
      height="100"
      fill="green"
      stroke="black"
      stroke-width="5"
   >
   </rect>
</svg>		 <svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="200" height="200" style="border: 2px solid black; background-color: rgb(253, 223, 253);">
<style type="text/css">
   #css-test {
      fill:green;
      stroke:black;
      stroke-width:5;
   }
</style>
   <rect
      id="css-test"
      x="50"
      y="50"
      width="100"
      height="100"
   >
   </rect>
</svg>		 <html>
<head>
<title>Teste SVG</title>
   <meta http-equiv="Content-Type" content="text/html;charset=utf-8">
   <script type="text/javascript" src="js-2d/jquery-3.4.1.min.js"></script>
   <script type="text/javascript" src="js-2d/svg/jquery.svg.js"></script>
</head>
<body>
<script>
$(function() {
   $('#svgbasics').svg({onLoad: desenhando});
});

function desenhando(){
var svg = $('#svgbasics').svg('get');
svg.rect(
   50,
   50,
   100,
   100,

   {
      fill: 'green',
      stroke: 'black',
      'stroke-width': 5
   }
);
}
</script>
   <div
      id="svgbasics"
      style="width:200; height:200;border: 2px solid black; background-color: rgb(253, 223, 253);"
   >
</div>
</body>
</html>


Ret\E2ngulo

XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <rect
      x="20"
      y="50"
      width="160"
      height="100"
      fill="green"
      stroke="black"
      stroke-width="5"
    >
    </rect>
</svg>		 <svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
<style type="text/css">
   #css-test {
      fill:green;
      stroke:black;
      stroke-width:5;
   }
</style>
   <rect
      id="css-test"
      x="20"
      y="50"
      width="160"
      height="100"
    >
    </rect>
</svg>		 <html>
<head>
<title>Teste SVG</title>
   <meta http-equiv="Content-Type" content="text/html;charset=utf-8">
   <script type="text/javascript" src="js-2d/jquery-3.4.1.min.js"></script>
   <script type="text/javascript" src="js-2d/svg/jquery.svg.js"></script>
</head>
<body>
<script>
$(function() {
   $('#svgbasics').svg({onLoad: desenhando});
});

function desenhando(){
var svg = $('#svgbasics').svg('get');
svg.rect(
   20,
   50,
   160,
   100,

   {
      fill: 'green',
      stroke: 'black',
      'stroke-width': 5
   }
);
}
</script>
   <div
      id="svgbasics"
      style="width:200; height:200;border: 2px solid black; background-color: rgb(253, 223, 253);"
   >
</div>
</body>
</html>

Ret\E2ngulo com cantos arredondados

XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <rect
      x="20"
      y="50"
      width="160"
      height="100"
      rx="20"
      fill="green"
      stroke="black"
      stroke-width="5"
   >
   </rect>

</svg>		 <svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
<style type="text/css">
   #css-test {
      fill:green;
      stroke:black;
      stroke-width:5;
   }
</style>
   <rect
      id="css-test"
      x="20"
      y="50"
      width="160"
      height="100"
      rx="20"
   >
   </rect>

</svg>		 <html>
<head>
<title>Teste SVG</title>
   <meta http-equiv="Content-Type" content="text/html;charset=utf-8">
   <script type="text/javascript" src="js-2d/jquery-3.4.1.min.js"></script>
   <script type="text/javascript" src="js-2d/svg/jquery.svg.js"></script>
</head>
<body>
<script>
$(function() {
   $('#svgbasics').svg({onLoad: desenhando});
});

function desenhando(){
var svg = $('#svgbasics').svg('get');
svg.rect(
   20,
   50,
   160,
   100,
   {
      rx: 20,
      fill: 'green',
      stroke: 'black',
      'stroke-width': 5
   }
);
}
</script>
   <div
      id="svgbasics"
      style="width:200; height:200;border: 2px solid black; background-color: rgb(253, 223, 253);"
   >
</div>
</body>
</html>

C\EDrculo

XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <circle
      cx="100"
      cy="100"
      r="80"
      fill="green"
      stroke="black"
      stroke-width="5"
   >
   </circle>
</svg>		 <svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
<style type="text/css">
   #css-test {
      fill:green;
      stroke:black;
      stroke-width:5;
   }
</style>
   <circle
      id="css-test"
      cx="100"
      cy="100"
      r="80"
   >
   </circle>

</svg>		 <html>
<head>
<title>Teste SVG</title>
   <meta http-equiv="Content-Type" content="text/html;charset=utf-8">
   <script type="text/javascript" src="js-2d/jquery-3.4.1.min.js"></script>
   <script type="text/javascript" src="js-2d/svg/jquery.svg.js"></script>
</head>
<body>
<script>
$(function() {
   $('#svgbasics').svg({onLoad: desenhando});
});

function desenhando(){
var svg = $('#svgbasics').svg('get');
svg.circle(
      100,
      100,
      80,
   {
      fill: 'green',
      stroke: 'black',
      'stroke-width': 5
   }
);
}
</script>
   <div
      id="svgbasics"
      style="width:200; height:200;border: 2px solid black; background-color: rgb(253, 223, 253);"
   >
</div>
</body>
</html>

Elipse


XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <ellipse
      cx="100"
      cy="100"
      rx="80"
      ry="40"
      fill="green"
      stroke="black"
      stroke-width="5"
   >
   </ellipse>

</svg>		 <svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
<style type="text/css">
   #css-test {
      fill:green;
      stroke:black;
      stroke-width:5;
   }
</style>
   <ellipse
      id="css-test"
      cx="100"
      cy="100"
      rx="80"
      ry="40"
   >
   </ellipse>

</svg>		 <html>
<head>
<title>Teste SVG</title>
   <meta http-equiv="Content-Type" content="text/html;charset=utf-8">
   <script type="text/javascript" src="js-2d/jquery-3.4.1.min.js"></script>
   <script type="text/javascript" src="js-2d/svg/jquery.svg.js"></script>
</head>
<body>
<script>
$(function() {
   $('#svgbasics').svg({onLoad: desenhando});
});

function desenhando(){
var svg = $('#svgbasics').svg('get');
svg.ellipse(
      100,
      100,
      80,
      40,
   {
      fill: 'green',
      stroke: 'black',
      'stroke-width': 5
   }
);
}
</script>
   <div
      id="svgbasics"
      style="width:200; height:200;border: 2px solid black; background-color: rgb(253, 223, 253);"
   >
</div>
</body>
</html>

Linha


XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <line
      x1="30"
      y1="30"
      x2="170"
      y2="170"
      stroke="green"
      stroke-width="5"
   >
   </line>
   <line
      x1="30"
      y1="170"
      x2="170"
      y2="30"
      stroke="black"
      stroke-width="5"
   >
   </line>
</svg>		 <svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
<style type="text/css">
   #css-test-1 {
      stroke:green;
      stroke-width:5;
   }
   #css-test-2 {
      stroke:black;
      stroke-width:5;
   }
</style>
   <line
      id="css-test-1"
      x1="30"
      y1="30"
      x2="170"
      y2="170"
   >
   </line>
   <line
      id="css-test-2"
      x1="30"
      y1="170"
      x2="170"
      y2="30"
   >
   </line>

</svg>		 <html>
<head>
<title>Teste SVG</title>
   <meta http-equiv="Content-Type" content="text/html;charset=utf-8">
   <script type="text/javascript" src="js-2d/jquery-3.4.1.min.js"></script>
   <script type="text/javascript" src="js-2d/svg/jquery.svg.js"></script>
</head>
<body>
<script>
$(function() {
   $('#svgbasics').svg({onLoad: desenhando});
});

function desenhando(){
var svg = $('#svgbasics').svg('get');
svg.line(
   30,
   30,
   170,
   170,
   {
      stroke:'green',
      'stroke-width':5
   }
);
svg.line(
   30,
   170,
   170,
   30,
   {
      stroke:'black',
      'stroke-width':5
   }
);
}
</script>
   <div
      id="svgbasics"
      style="width:200; height:200;border: 2px solid black; background-color: rgb(253, 223, 253);"
   >
</div>
</body>
</html>

Poli Linha
XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <polyline
      points="0,40 40,40 40,80 80,80 80,120 120,120 120,160"
      fill="white"
      stroke="#0562DC"
      stroke-width="4"
   />
</svg>


Poligon


XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <polygon
      points="50,5 100,5 125,30 125,80 100,105 50,105 25,80 25,30"
      fill="#0562DC"
      stroke="#000"
      stroke-width="4"
   />
</svg>

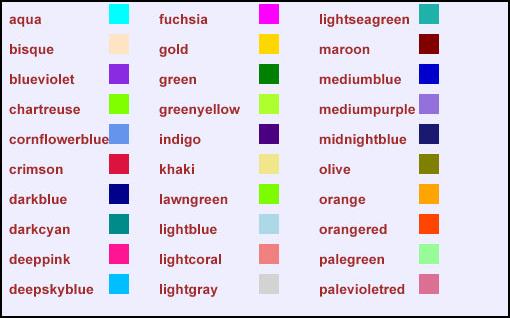

Cores

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<rect x="10" y="10" width="10" height="10" style="fill:coral" />
<rect x="30" y="10" width="10" height="10" style="fill:rgb(255,27,180)" />
<rect x="50" y="10" width="10" height="10" style="fill:#456" />
<rect x="70" y="10" width="10" height="10" style="fill:#CC00CC" />
</svg>
Resultado:

stroke-dasharray

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<rect x="50" y="10" width="200" height="80" stroke="red" stroke-width="10" stroke-dasharray="10, 10" fill="green" opacity="0.5"/>
</svg>
Resultado:



<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="350" height="200" style="border:solid">
<line x1="10" y1="10" x2="330" y2="10" style="stroke:black; stroke-width:5;" />
<line x1="10" y1="50" x2="330" y2="50" style="stroke:blue; stroke-width:10;" />
<line x1="10" y1="90" x2="330" y2="90" style="stroke:red; stroke-width:10; stroke-dasharray: 10" />
<line x1="10" y1="130" x2="330" y2="130" style="stroke:green; stroke-width:5; stroke-dasharray: 10,2; fill: none;" />
<line x1="10" y1="170" x2="330" y2="170" style="stroke:yellow; stroke-width:20; stroke-dasharray: 10,2,10; fill: none;" />
</svg>
Resultado:

Opacidade

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<rect x="80" y="40" width="100" height="40" fill="yellow" stroke="red" stroke-width="10"/>
<rect x="120" y="20" width="100" height="40" fill="blue" opacity="0.5" stroke="green" stroke-width="10"/>
</svg>
Resultado:

Gradiente

SVG Linear

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<linearGradient id="g1" gradientUnits="userSpaceOnUse" x1="50" y1="10" x2="250" y2="90">
<stop offset="0" style="stop-color:blue" />
<stop offset="0.5" style="stop-color:yellow" />
<stop offset="1" style="stop-color:red" />
</linearGradient>
<rect x="50" y="10" width="200" height="80" fill="url(#g1)" stroke="red" stroke-width="2"/>
</svg>
Resultado:

SVG Radial

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<radialGradient id="g2" gradientUnits="userSpaceOnUse" cx="150" cy="50" r="80" fx="180" fy="80" >
<stop offset="0" style="stop-color:blue" />
<stop offset=".5" style="stop-color:yellow" />
<stop offset="1" style="stop-color:red" />
<stop offset="1.5" style="stop-color:green" />
</radialGradient>
<rect x="50" y="10" width="200" height="80" fill="url(#g2)" stroke="blue" stroke-width="2"/>
</svg>
Resultado:

SVG Path


Geometria dada pelo atributo d

d = "cmd coords cmd coords ..."

Comandos para retas:

  • M = Mover para
  • L = tra\E7ar Linha at\E9
  • H = tra\E7ar linha Horizontal
  • V = tra\E7ar linha Vertical
  • Z = fechar o caminho
Exemplo:
 <svg style="border: 2px solid gray;" height="300" width="400">
   <style>
      .A {
         fill:orange;
         stroke:brown;
         stroke-width:4px;
      }
   </style>
      <path d="M 10 10 L 50 50 H 10 Z" class="A"></path>
      <path  d="M 100 100 L 200 50 H 300 V 200 H200 Z" class="A"></path>
</svg>

`

Path com coordenadas relativas


Exemplo:
<svg width=400 height=300 style="border:2px solid gray">
   <style>
      .A {
         fill:orange;
         stroke:brown;
         stroke-width:4px;
      }
   </style>
   <path class="A" d="M 100,100 l 100,100 h -100 v -100 Z"/>
</svg>




SVG Path Curvas

SVG Curva

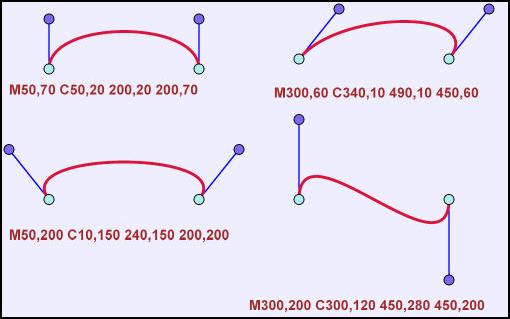

SVG Curvas

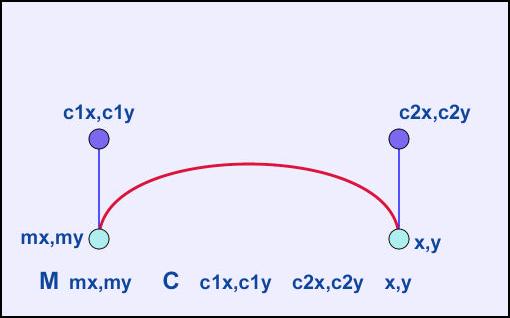

Curva 1
<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<path d="M20,80 C 20,-20 280,-20 280,80" fill="none" stroke="red" stroke-width="5" />
</svg>
Curva 2
<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<path d="M20,80 C 60,20 320,-20 280,80" fill="none" stroke="red" stroke-width="5" />
</svg>
Curva 3
<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<path d="M20,80 C -40,-10 340,-10 280,80" fill="none" stroke="red" stroke-width="5" />
</svg>
Curva 4
<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<path d="M20,50 C 20,-60 280,160 280,50" fill="none" stroke="red" stroke-width="5" />
</svg>

SVG Path: jQuery Curvas

Insira Este c\F3digo:
<script type="text/javascript" src="js-2d/jquery-3.4.1.min.js"></script>
<script type="text/javascript" src="js-2d/svg/jquery.svg.js"></script>
Path - Curva 1 - Aberta
<div id="jquery_8" style="width: 300px; height: 200px; border: 1px solid #484;"></div>
<script type="text/javascript">
$(function() {
$('#jquery_8').svg({onLoad: svg_8});
});
function svg_8(svg){
var path1 = svg.createPath();
svg.path(path1.move(20,80).curveC(20,-20, 280,-20, 280,80), {fill: 'none', stroke: 'red', strokeWidth: 5});
}
</script>





Path - Curva 1 - Fechada
<div id="jquery_9" style="width: 300px; height: 200px; border: 1px solid #484;"></div>
<script type="text/javascript">
$(function() {
$('#jquery_9').svg({onLoad: svg_9});
});
function svg_9(svg){
var path1 = svg.createPath();
svg.path(path1.move(20,80).curveC(20,-20, 280,-20, 280,80).close(), {fill: 'none', stroke: 'red', strokeWidth: 5});
}
</script>





Path - Mais de uma curva - com linha no meio
<div id="jquery_10" style="width: 300px; height: 200px; border: 1px solid #484;"></div>
<script type="text/javascript">
$(function() {
$('#jquery_10').svg({onLoad: svg_10});
});
function svg_10(svg){
var path1 = svg.createPath();
svg.path(path1.move(50, 90).curveC(0, 90, 0, 30, 50, 30).line(150, 30).curveC(200, 30, 200, 90, 150, 90), {fill: 'none', stroke: 'red', strokeWidth: 5});
}
</script>





Path - Mais de uma curva - sem linha no meio
<div id="jquery_10" style="width: 300px; height: 200px; border: 1px solid #484;"></div>
<script type="text/javascript">
$(function() {
$('#jquery_10').svg({onLoad: svg_10});
});
function svg_10(svg){
var path1 = svg.createPath();
svg.path(path1.move(50, 90).curveC(0, 90, 0, 30, 50, 30).curveC(200, 30, 200, 90, 150, 90), {fill: 'none', stroke: 'red', strokeWidth: 5});
}
</script>





Path - Com cor de Fundo
<div id="jquery_12" style="width: 300px; height: 200px; border: 1px solid #484;"></div>
<script type="text/javascript">
$(function() {
$('#jquery_12').svg({onLoad: svg_12});
});
function svg_12(svg){
var path1 = svg.createPath();
svg.path(path1.move(50, 90).curveC(0, 90, 0, 30, 50, 30).line(150, 30).curveC(200, 30, 200, 90, 150, 90), {fill: 'blue', stroke: 'red', strokeWidth: 5});
}
</script>






Arco

C\F3digo Fonte:
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
<html><head>
<meta http-equiv="content-type" content="text/html; charset=ISO-8859-1">
<title>Teste</title>
<script>
function describeArc(x, y, radius, spread, startAngle, endAngle){
    var innerStart = polarToCartesian(x, y, radius, endAngle);
      var innerEnd = polarToCartesian(x, y, radius, startAngle);
    var outerStart = polarToCartesian(x, y, radius + spread, endAngle);
    var outerEnd = polarToCartesian(x, y, radius + spread, startAngle);

    var largeArcFlag = endAngle - startAngle <= 180 ? "0" : "1";

    var d = [
        "M", outerStart.x, outerStart.y,
        "A", radius + spread, radius + spread, 0, largeArcFlag, 0, outerEnd.x, outerEnd.y,
        "L", innerEnd.x, innerEnd.y,
        "A", radius, radius, 0, largeArcFlag, 1, innerStart.x, innerStart.y,
        "L", outerStart.x, outerStart.y, "Z"
    ].join(" ");

    return d;
}

function polarToCartesian(centerX, centerY, radius, angleInDegrees) {
  var angleInRadians = (angleInDegrees-90) * Math.PI / 180.0;

  return {
    x: centerX + (radius * Math.cos(angleInRadians)),
    y: centerY + (radius * Math.sin(angleInRadians))
  };
}
</script>

<script>

path = describeArc(75, 75, 50, 20, 0, 270);

valor = ''+
'<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="200" height="200" style="border: 2px solid black; background-color: rgb(253, 223, 253);">'+
'<path fill="blue" stroke="cyan"stroke-width="4" d="' +path+'"></path>'+
'</svg>';

document.write(valor);

</script>

</body>
</html>

Linha com 1 pixel de largura

XML CSS Javascript jQuery JSON
<svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
   <path
      stroke="black"
      fill="none"
      stroke-width='1px'
      d='M 10 10 L 190 190'
      vector-effect="non-scaling-stroke"
   />
</svg>		 <svg xmlns="http://www.w3.org/2000/svg" version="1.1"
 width="200" height="200"
 style="border: 2px solid black; background-color: rgb(253, 223, 253);">
<style type="text/css">
   #css-test {
      stroke:black;
      fill:none;
      'stroke-width':'1px'
      'vector-effect':'non-scaling-stroke'
   }
</style>
   <path
      id="css-test"
      d='M 10 10 L 190 190'
   />
</svg>

Transformações geométricas

<g transform="translate(x,y)"> .... </g>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g transform="translate(150 50)">
<rect width="15" height="15" fill="red"/>
</g>
</svg>
Resultado:

<g transform="rotate(angle)"> .... </g>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g transform="translate(145 15) rotate(45)">
<rect width="50" height="50" fill="blue" stroke="red" stroke-width="2"/>
</g>
</svg>
Resultado:

<g transform="rotate(angle, ox, oy)"> .... </g>

<g transform="scale(sxy)"> .... </g>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g transform="translate(5 5) scale(1)">
<rect width="10" height="10" fill="red"/>
</g>
<g transform="translate(20 5) scale(2)">
<rect width="10" height="10" fill="red"/>
</g>
<g transform="translate(45 5) scale(3)">
<rect width="10" height="10" fill="red"/>
</g>
<g transform="translate(80 5) scale(4)">
<rect width="10" height="10" fill="red"/>
</g>
</svg>

<g transform="scale(sx,sy)"> .... </g>
Normal

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="100" style="border:solid">
<image xlink:href="img/anime.jpg" x="10" y="10" width="280" height="80"/>
</svg>
Resultado:

Esticar Horizontalmente

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="400" height="100" style="border:solid">
<g transform="scale(3, 1)">
<image xlink:href="img/anime.jpg" x="-80" y="10" width="280" height="80"/>
</g>
</svg>
Resultado:

Esticar Verticalmente

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="120" height="300" style="border:solid">
<g transform="scale(1, 3)">
<image xlink:href="img/anime.jpg" x="-80" y="10" width="280" height="80"/>
</g>
</svg>
Resultado:

<g transform="skewX(angle)"> .... </g>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g transform="translate(100 15) skewX(30)">
<rect width="50" height="50" fill="blue" stroke="red" stroke-width="2"/>
</g>
</svg>
Resultado:

<g transform="skewY(angle)"> .... </g>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g transform="translate(100 15) skewY(30)">
<rect width="50" height="50" fill="blue" stroke="red" stroke-width="2"/>
</g>
</svg>
Resultado:

Transformações Geométricas
Normal


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149"/>
        </svg>
Tamanho do Gráfico


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" id="imagem" x="50" y="75" width="200" height="149"/>
        </svg>
<script>
document.write("<br>");
document.write("Largura da imagem: "+document.getElementById('imagem').getAttribute("width"));
document.write("<br>");
document.write("Altura da imagem: "+document.getElementById('imagem').getAttribute("height"));
</script>
Posição do Gráfico


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" id="imagem2" x="50" y="75" width="200" height="149"/>
        </svg>
<script>
document.write("<br>");
document.write("X: "+document.getElementById('imagem2').getAttribute("x"));
document.write("<br>");
document.write("Y: "+document.getElementById('imagem2').getAttribute("y"));
</script>
Aumentar e Diminuir [width e heigth]
Imagem 01


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="600" height="600" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" x="50" y="75" width="400" height="298"/>
        </svg>

Imagem 02


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" x="50" y="75" width="100" height="74.5"/>
        </svg>
Aumentar e Diminuir [scale(sxy)]
Imagem 01


   <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="500" height="500" style="background-color:#FDDFFD;border: 2px solid black">
      <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
      <g transform="scale(1.5, 1.5)">
         <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149"/>
      </g>
   </svg>

Imagem 02


   <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
      <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
      <g transform="scale(0.5, 0.5)">
         <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149"/>
      </g>
   </svg>
Comprimir e Esticar [width e height]
Comprimir e Esticar [scale(sx,sy)]
Imagem 01


   <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="900" height="300" style="background-color:#FDDFFD;border: 2px solid black">
      <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
      <g transform="scale(3, 1)">
         <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149"/>
      </g>
   </svg>

Imagem 02


   <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="700" style="background-color:#FDDFFD;border: 2px solid black">
      <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
      <g transform="scale(1, 3)">
         <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149"/>
      </g>
   </svg>
Mover x, y


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <g transform="translate(25 25)">
            <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149"/>
          </g>
        </svg>
Inverter Horizontalmente


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" transform="scale(-1,1)" x="-250" y="75" width="200" height="149"/>
        </svg>
Inverter Verticalmente


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" transform="scale(1,-1)" x="50" y="-224" width="200" height="149"/>
      </svg>
Inverter Horizontalmente e Verticalmente


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" transform="scale(-1,-1)" x="-250" y="-224" width="200" height="149"/>
        </svg>
Transparência


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg"opacity="0.5" x="50" y="75" width="200" height="149"/>
        </svg>
Girar [rotate(angle)]


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <g transform="rotate(45)">
            <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149"/>
          </g>
        </svg>
Girar [rotate(angle, ox, oy)]


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <g transform="rotate(45, 150, 149)">
            <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149"/>
          </g>
        </svg>
Recortar


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <clipPath id="cp1">
            <circle cx="150" cy="150" r="50"/>
          </clipPath>
          <image xlink:href="img/anime.jpg" x="50" y="75" width="200" height="149" clip-path="url(#cp1)"/>
        </svg>
Distorção [skewX]


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <g transform="skewX(30)">
            <image xlink:href="img/anime.jpg" x="0" y="75" width="200" height="149"/>
          </g>
        </svg>
Distorção [skewY]


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <g transform="skewY(30)">
            <image xlink:href="img/anime.jpg" x="50" y="45" width="200" height="149"/>
          </g>
        </svg>
Visivel e Invisivel


        <svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="300" style="background-color:#FDDFFD;border: 2px solid black">
          <rect x="50" y="75" width="200" height="149" fill="blue" stroke="red" stroke-width="5"/>
          <image xlink:href="img/anime.jpg" id="imagem3" x="50" y="75" width="200" height="149"/>
        </svg>
<script>
// Vis\EDvel
document.getElementById('imagem3').style.visibility = "visible";
// Invis\EDvel
document.getElementById('imagem3').style.visibility = "hidden";
</script>

Texto

text - texto

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="40" y="50" font-family="courier new" font-size="40" fill="red" stroke="red" stroke-width="5"> Hello SVG! </text>
</svg>
Resultado:
Hello SVG!

tspan - texto

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
   <text x="40" y="50" font-family="courier new" font-size="20" fill="black" stroke-width="2">
   Texto
      <tspan font-size="40" fill="red">
         Texto
      </tspan>
   </text>
< /svg>
Resultado:
Texto Texto

2º Exemplo

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="1">
<tspan x="10" dy="18">This is multi-line</tspan>
<tspan x="10" dy="18">text or text</tspan>
<tspan x="10" dy="18">with different properties</tspan>
<tspan x="10" dy="18">that can be produced</tspan>
<tspan x="10" dy="18">using the tspan element</tspan>
</text>
</svg>
Resultado:
This is multi-line text or text with different properties that can be produced using the tspan element

font-family

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="1">
<tspan x="10" dy="18" font-family="courier">Courier</tspan>
<tspan x="10" dy="18" font-family="helvetical">Helvetical</tspan>
</text>
</svg>
Resultado:
Courier Helvetical

font-size

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="1">
<tspan x="10" dy="20" font-size="20">20</tspan>
<tspan x="10" dy="40" font-size="40">40</tspan>
</text>
</svg>
Resultado:
20 40

font-style

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="1">
<tspan x="10" dy="18" font-style="normal">Normal</tspan>
<tspan x="10" dy="18" font-style="italic">Italic</tspan>
<tspan x="10" dy="18" font-style="oblique">Oblique</tspan>
</text>
</svg>
Resultado:
Normal Italic Oblique

font-weight

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="1">
<tspan x="10" dy="18" font-weight="normal">Normal</tspan>
<tspan x="10" dy="18" font-weight="bold">Bold</tspan>
<tspan x="10" dy="18" font-weight="100">100</tspan>
<tspan x="10" dy="18" font-weight="900">900</tspan>
</text>
</svg>
Resultado:
Normal Bold 100 900

text-decoration

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="1">
<tspan x="10" dy="18" text-decoration="none">None</tspan>
<tspan x="10" dy="18" text-decoration="underline">Underline</tspan>
<tspan x="10" dy="18" text-decoration="line-through">Line-Through</tspan>
<tspan x="10" dy="18" text-decoration="overline">Overline</tspan>
</text>
</svg>
Resultado:
None Underline Line-Through Overline

fill

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="1">
<tspan x="10" dy="18" fill="red">Red</tspan>
<tspan x="10" dy="18" fill="green">Green</tspan>
</text>
</svg>
Resultado:
Red Green

stroke

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="1">
<tspan x="10" dy="40" font-size="40" font-weight="bold" stroke="red">Red</tspan>
<tspan x="10" dy="40" font-size="40" font-weight="bold" stroke="green">Green</tspan>
</text>
</svg>
Resultado:
Red Green

Baseline-shift

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="18">
x
<tspan style="baseline-shift:super">super</tspan>
+y
<tspan style="baseline-shift:sub">sub</tspan>
+1
</text>
</svg>
Resultado:
x super +y sub +1

rotate

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<text x="10" y="18">
<tspan x="20" dy="30" rotate="10 20 30 40 0 50 60 70 0 80 90 0 100 110 120 140 150 160 170 180">that can be produced</tspan>
</text>
</svg>
Resultado:
that can be produced

textpadth

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="100" style="border:solid">
<path id="duck" d="M20 20 L20 80 L100 80 L100 20 L200 20 L200 80 L280 80" fill="none" stroke="none"/>
<text style="font-size:10">
<textPath xlink:href="#duck">
We go up, then we go down, then up again around his head. Now we are upside down as we
go round his neck and along the bottom to the tail.
</textPath>
</text>
</svg>
Resultado:
We go up, then we go down, then up again around his head. Now we are upside down as we go round his neck and along the bottom to the tail.

Recursos

defs – definições de formas
use – uso de formas definidas

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="100" style="border:solid">
<defs>
<rect id="rect" width="15" height="15" fill="red"/>
</defs>
<use x="5" y="5" xlink:href="#rect"/>
<use x="30" y="30" xlink:href="#rect"/>
</svg>
<embed src="svg/recursos.svg" height="110" width="310" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

g

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g fill="blue" stroke="red" stroke-width="2">
<rect x="50" y="10" width="100" height="40"/>
<rect x="150" y="50" width="100" height="40"/>
</g>
</svg>
<embed src="svg/ggg.svg" height="110" width="310" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

Transformações geométricas

<g transform="translate(x,y)"> .... </g>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g transform="translate(150 50)">
<rect width="15" height="15" fill="red"/>
</g>
</svg>
<embed src="svg/translate.svg" height="110" width="310" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

<g transform="rotate(angle)"> .... </g>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g transform="translate(145 15) rotate(45)">
<rect width="50" height="50" fill="blue" stroke="red" stroke-width="2"/>
</g>
</svg>
<embed src="svg/rotacao.svg" height="110" width="310" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

<g transform="rotate(angle, ox, oy)"> .... </g>

<g transform="scale(sxy)"> .... </g>

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<g transform="translate(5 5) scale(1)">
<rect width="10" height="10" fill="red"/>
</g>
<g transform="translate(20 5) scale(2)">
<rect width="10" height="10" fill="red"/>
</g>
<g transform="translate(45 5) scale(3)">
<rect width="10" height="10" fill="red"/>
</g>
<g transform="translate(80 5) scale(4)">
<rect width="10" height="10" fill="red"/>
</g>
</svg>
<embed src="svg/scale.svg" height="110" width="310" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>

style

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<rect x="50" y="10" width="200" height="80" style="fill:blue; stroke:red; stroke-width:2"/>
</svg>
Resultado:

Style 2

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<style type="text/css"> <![CDATA[
#amarelo {
fill: yellow;
stroke: green;
stroke-width: 10;
}
]]> </style>
<rect x="50" y="10" width="200" height="80" id="amarelo"/>
</svg>
Resultado:

Style Externo

Arquivo: mystyle.svg
<?xml-stylesheet type="text/css" href="mystyle.css" ?>
<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<rect x="50" y="10" width="200" height="80" id="verde"/>
</svg>
Arquivo: mystyle.css
#verde {
fill: green;
stroke: blue;
stroke-width: 10;
}
<embed src="svg/mystyle.svg" height="110" width="310" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

Comentários

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="300" height="100" style="border:solid">
<!-- ************** Comentario ******************** -->
<!-- ************** Exemplo ******************** -->
<rect x="50" y="10" width="200" height="80" fill="green"/>
</svg>
Resultado:

Javascript

setAttribute

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="250" height="250">
<script language="JavaScript"> <![CDATA[
function circle_click() {
var circle = document.getElementById("circulo");
var raio = circle.getAttribute("r");
if (raio == 50) {
circle.setAttribute("r", 100);
} else {
circle.setAttribute("r", 50);
}
}
]]> </script>
<rect x="1" y="1" width="248" height="248" fill="none" stroke="blue"/>
<circle onclick="circle_click()" id="circulo" cx="125" cy="125" r="50" fill="red"/>
<text id="texto" x="15" y="20" font-family="Verdana" font-size="15">SVG</text>
<text x="15" y="240" font-family="Verdana" font-size="15">Clique no circulo</text>
</svg>
<embed src="svg/atributo.svg" height="250" width="250" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

style

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="250" height="250">
<script language="javascript"> <![CDATA[
function circle_click() {
var circle = document.getElementById("circulo");
var opacidade = circle.style.opacity;
if (opacidade == 1) {
circle.style.opacity = 0.3;
} else {
circle.style.opacity = 1;
}
}
]]> </script>
<rect x="1" y="1" width="248" height="248" fill="none" stroke="blue"/>
<circle onclick="circle_click()" id="circulo" cx="125" cy="125" r="50" style="opacity:1" fill="red"/>
<text id="texto" x="15" y="20" font-family="Verdana" font-size="15">SVG</text>
<text x="15" y="240" font-family="Verdana" font-size="15">Clique no circulo</text>
</svg>
<embed src="svg/opacidade.svg" height="250" width="250" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

firstChild.nodeValue

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="250" height="250">
<script language="JavaScript"> <![CDATA[
function circle_click() {
var txt = document.getElementById("texto");
var texto = txt.firstChild.nodeValue;
if (texto == "SVG") {
txt.firstChild.nodeValue = "Teste";
} else {
txt.firstChild.nodeValue = "SVG";
}
}
]]> </script>
<rect x="1" y="1" width="248" height="248" fill="none" stroke="blue"/>
<circle onclick="circle_click()" id="circulo" cx="125" cy="125" r="50" fill="red"/>
<text id="texto" x="15" y="20" font-family="Verdana" font-size="15">SVG</text>
<text x="15" y="240" font-family="Verdana" font-size="15">Clique no circulo</text>
</svg>
<embed src="svg/value.svg" height="250" width="250" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

className.baseVal

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="250" height="250">
<style type="text/css"> <![CDATA[
.vermelho {
fill: red;
stroke: blue;
stroke-width: 5;
}
.azul {
fill: blue;
stroke: green;
stroke-width: 10;
}
]]> </style>
<script language="JavaScript"> <![CDATA[
function circle_click() {
var circle = document.getElementById("circulo");
var classe = circle.className.baseVal;
if (classe == "vermelho") {
circle.className.baseVal = "azul";
} else {
circle.className.baseVal = "vermelho";
}
}
]]> </script>
<rect x="1" y="1" width="248" height="248" fill="none" stroke="blue"/>
<circle onclick="circle_click()" id="circulo" cx="125" cy="125" r="50" fill="red"/>
<text id="texto" x="15" y="20" font-family="Verdana" font-size="15">SVG</text>
<text x="15" y="240" font-family="Verdana" font-size="15">Clique no circulo</text>
</svg>
<embed src="svg/classe.svg" height="250" width="250" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

Visível e Invisível

<svg xmlns="http://www.w3.org/2000/svg" version="1.1" width="250" height="250">
<style type="text/css"> <![CDATA[
.visivelX {
visibility: visible;
}
.invisivelX {
visibility: hidden;
}
]]> </style>
<script language="JavaScript"> <![CDATA[
function circle_click() {
var circle = document.getElementById("circulo");
var classe = circle.className.baseVal;
if (classe == "visivelX") {
circle.className.baseVal = "invisivelX";
} else {
circle.className.baseVal = "visivelX";
}
}
]]> </script>
<rect x="1" y="1" width="248" height="248" fill="none" stroke="blue"/>
<circle onclick="circle_click()" cx="125" cy="125" r="50" fill="red"/>
<circle id="circulo" class="visivelX" cx="25" cy="25" r="20" fill="green"/>
<text x="15" y="240" font-family="Verdana" font-size="15">Clique no circulo</text>
</svg>
<embed src="svg/invisivel.svg" height="250" width="250" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:

createElementNS

<svg
xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink" version="1.1" width="300" height="100" style="border:solid">
<script language="JavaScript"> <![CDATA[
var svgns = "http://www.w3.org/2000/svg";

function makeShape(evt) {
if ( window.svgDocument == null )
svgDocument = evt.target.ownerDocument;
var shape = svgDocument.createElementNS(svgns, "circle");
shape.setAttributeNS(null, "cx", 25);
shape.setAttributeNS(null, "cy", 25);
shape.setAttributeNS(null, "r", 20);
shape.setAttributeNS(null, "fill", "green");
svgDocument.documentElement.appendChild(shape);
}
]]> </script>
<g onload="makeShape(evt)">
</g>
</svg>
<embed src="svg/funcao.svg" height="110" width="310" type="image/svg+xml"
pluginspage="http://www.adobe.com/svg/viewer/install/" ></embed>
Resultado:
